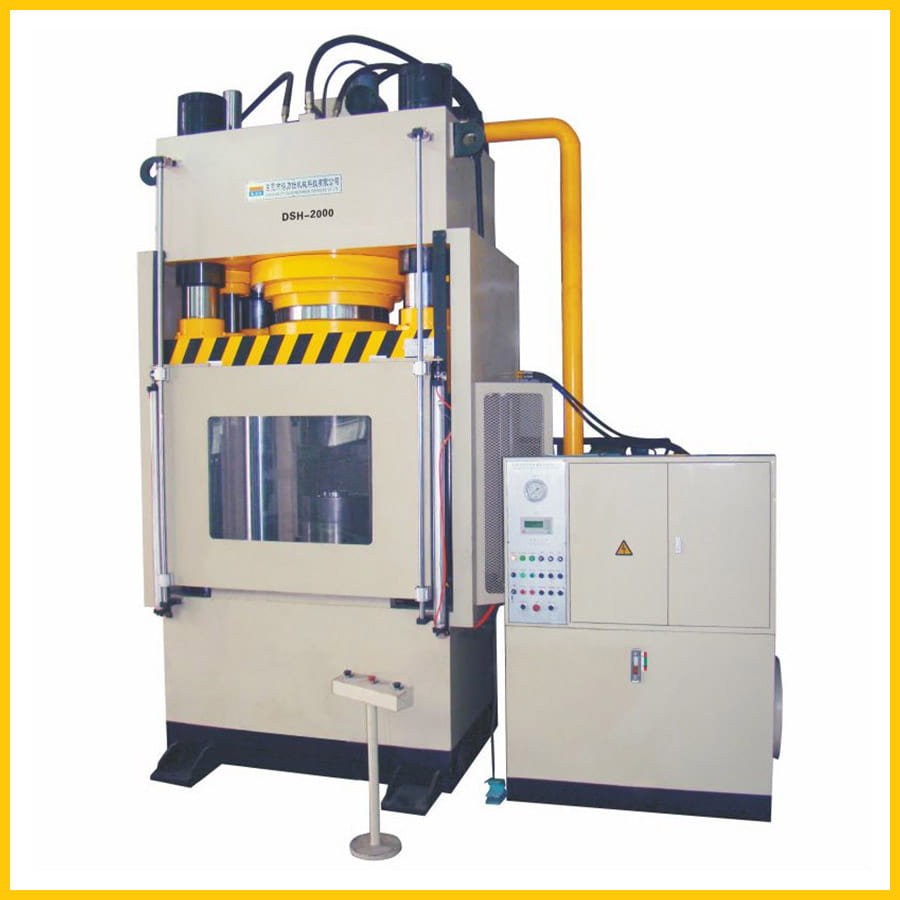

Cold Extrusion Hydraulic Press

Introduction：
Cold Extrusion Hydraulic Press
Suitable for LED aluminum heat sink,auto spare parts,watchband, watchcase etc.

GET A QUOTE

PRODUCT

Hydraulic Forging Press Machine

Deep Drawing Hydraulic Press

Gib Guided Hydraulic Press

Jigsaw Puzzle Machine

Carbon Fiber Hydraulic Press

C Frame Hydraulic Press

DETAILS

Cold Extrusion Hydraulic Press

Main Specifications Of Cold Extrusion Hydraulic Press DSHS

Model		Units	Specifications
Model		Units	DSHS-100	DSHA-150	DSHA-200	DSHA-300	DSHA-500	DSHA-650	DSHS-800	DSHS-1000	DSHS-1200
Main cyinder	Capacity	ton	100	150	200	300	500	650	800	1000	1200
	Silde	mm	300	350	400	400	500	500	500	500	500
	Down speed	mm/s	150	160	160	160	180	165	165	165	165
	Press speed	mm/s	6～15	10～24	8～9	8～12	8～15	8～16	8～16	8～16	8～15
	Return speed	mm/s	150	150	150	130	150	160	160	160	160
Knock-out cyinder	Capacity	ton	15	20	30	30	40	50	50	80	80
	Silde	mm	200	200	200	200	200	250	250	250	250
	Rod diameter	mm	Φ40	Φ40	Φ50	Φ50	Φ50	Φ80	Φ80	Φ80	Φ80
Actual area of bench	L-R（Cylinder）	mm	500	500	700	700	800	1000	1000	1200	1400
Actual area of bench	F-B（edge）	mm	500	500	700	700	800	1000	1200	1300	1500
Open height		mm	600	600	700	700	800	900	1000	1100	1200
Motor power		kw	7.5	15	15	28	37	37	59	74	90

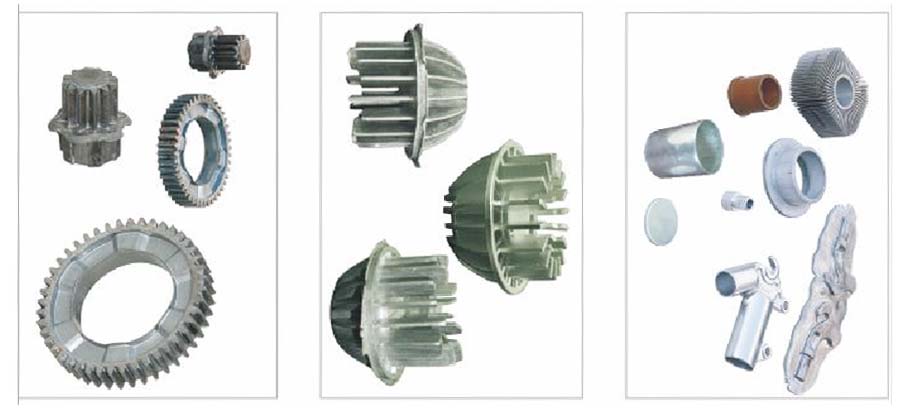

Application Of Cold Extrusion Hydraulic Press

Our cold extrusion hydraulic press is suitable for cold extrusion forming, shallow, drawing and blanking. Such as automobile, motorcycle spare parts, cell phone casing, LED heat sink, watchband, watchcase, hardware tools etc.
