    600 Ton Jigsaw Puzzle Machine

    Introduction：
    Jigsaw Puzzle Machine DPTS-600
    Parallelism Between Platens: ±0.04 mm
    Flatness Of Platens: ±0.025 mm
    Pressure Repeat Precision: ±1%

    GET A QUOTE

    600 Ton Jigsaw Puzzle Machine

    600 Ton Jigsaw Puzzle Machine

    Main Specifications of Jigsaw Puzzle Machine DPTS-600

    Model Unit Specifications
    DPTS-600
    Structure   Four columns and three beams
    Master Cylinder capacity ton 600
    System pressure mpa 25
    Max stroke of slider mm 200
    Max open height mm 200
    Slider speed Fast down mm/s 215
    Pressing mm/s 3-7
    Return mm/s 195
    Working table size L-R (inner) mm 850
    F-B (edge) mm 880
    Working table height mm 1030
    Min height of loading mold mm 0
    Mold shift stroke mm 850
    Machine size L-R mm 1960
    F-B mm 2890
    H mm 2600
    Motor power kw 22
    Power 3phase AC220V
    The above parameters are for reference, ordering the contract shall prevail.

    Precision Of Jigsaw Puzzle Machine

    Parallelism Between Platens：±0.04 mm
    Flatness Of Platens：±0.025 mm
    Pressure Repeat Precision：±1%

    Application Of Jigsaw Puzzle Machine

    Our jigsaw puzzle machine is suitable for blue cord,white cord,wood and grey board material. The whole jigsaw puzzle can be die cut to 1000-2000 pieces one time.

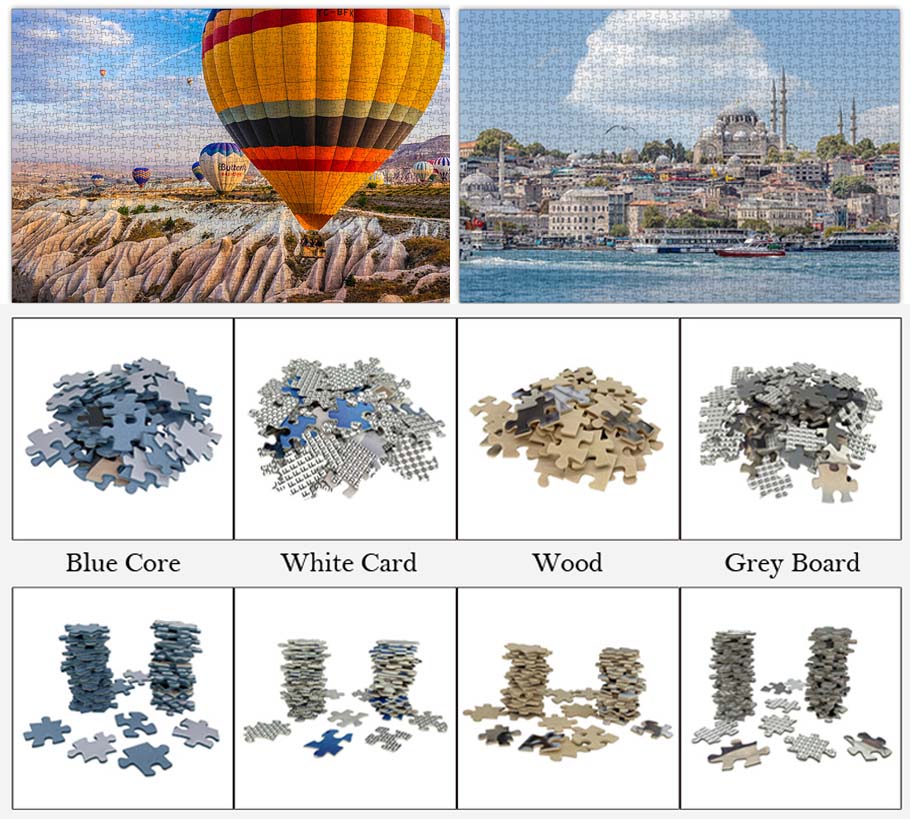

    jigsaw puzzle machine samples

    Advantages Of Delishi Jigsaw Puzzle Machine:

    10”HMI（Language: English）
    SSR
    HYDAC Pressure Transducer
    Position Sensor
    Siemens PLC
    Banner Touch Buttons
    Rexroth Hydraulic Components
    Schneider Electric Components
    100+ workers over 10 years
    Many top 500 enterprise cooperation experience
