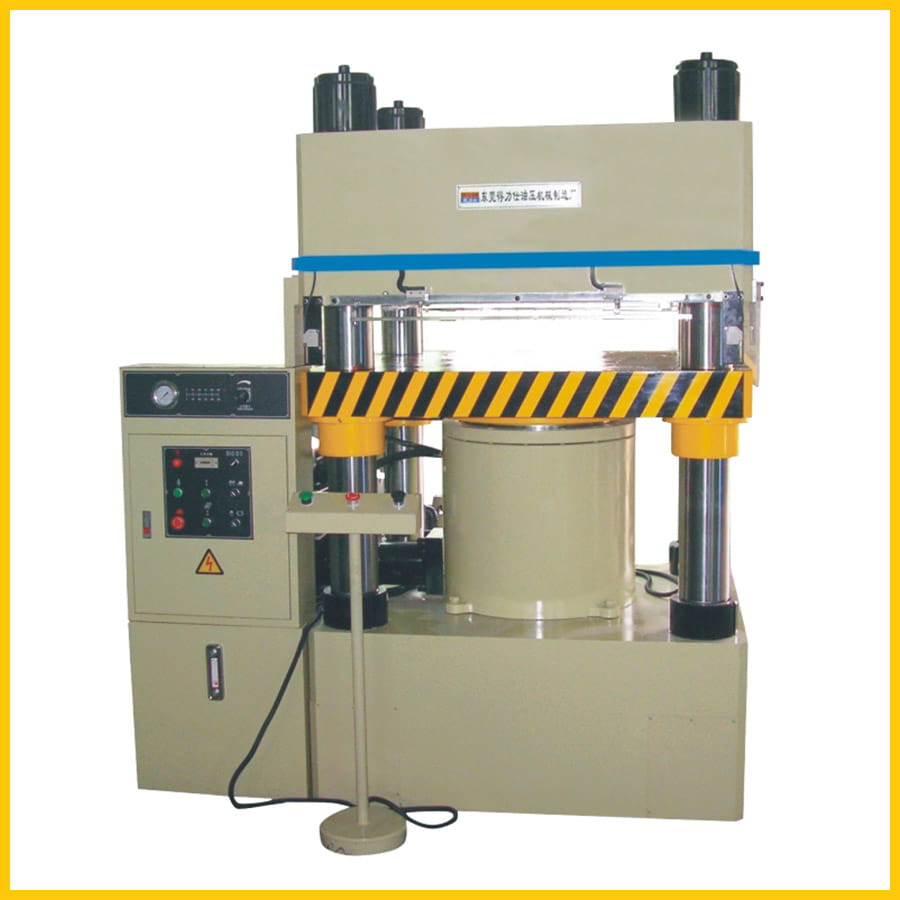

300 Ton Jigsaw Puzzle Machine
Main Specifications Of Jigsaw Puzzle Press Machine DPTS-300
| Model | Unit | Specifications | |
| DPTS-300 | |||
| Structure | Four columns and three beams | ||
| Master Cylinder capacity | ton | 300 | |
| System pressure | mpa | 24 | |
| Max stroke of slider | mm | 185 | |
| Max open height | mm | 200 | |
Application Of Jigsaw Puzzle Press Machine
Our jigsaw puzzle press machine is suitable for wood and paper educational products,plastic trimming and glue.
