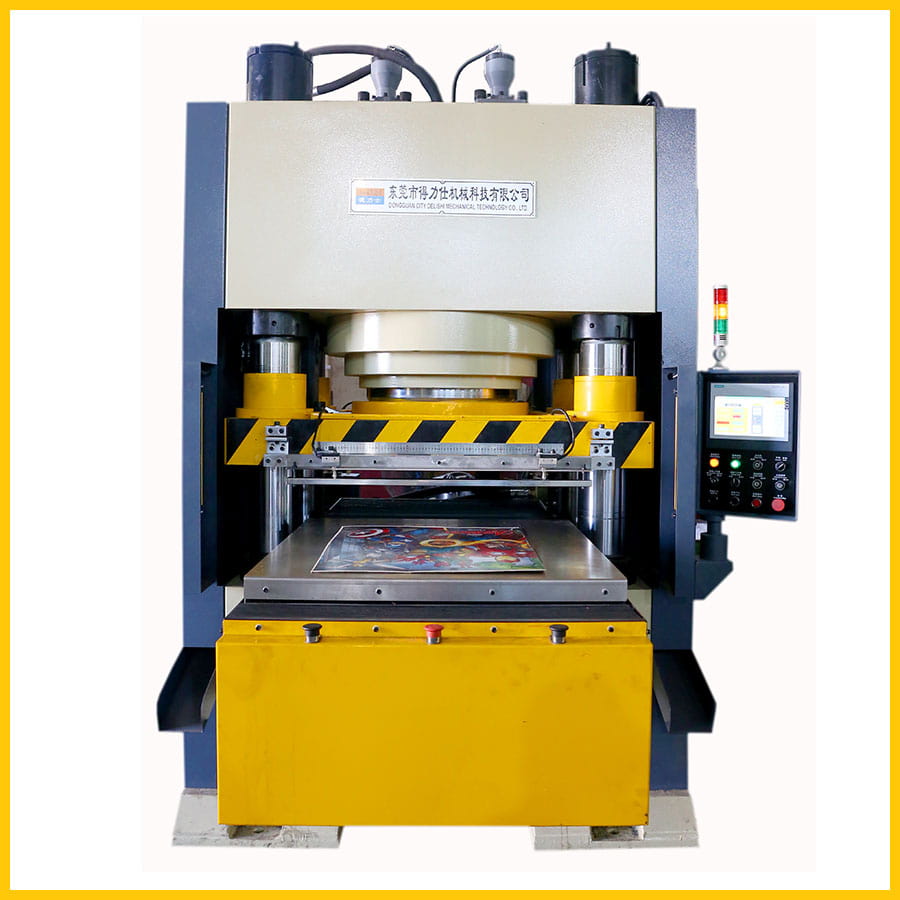

1000 Ton Jigsaw Puzzle Machine
Main Specifications of Jinsaw Puzzle Machine DPTS-1000
| Model | Unit | Specifications | |
| DPTS-1000 | |||
| Structure | Four columns and three beams | ||
| Master Cylinder capacity | ton | 1000 | |
| System pressure | mpa | 25 | |
| Max stroke of slider | mm | 200 | |
Precision Of Jigsaw Puzzle Machine
Parallelism Between Platens：±0.04 mm
Flatness Of Platens：±0.025 mm
Pressure Repeat Precision：±1%
Jigsaw Puzzle Machine Application
Our jigsaw puzzle machine is suitable for blue cord,white cord,wood and grey board material. The whole jigsaw puzzle can be die cut to 1000-2000 pieces one time.
Flatness Of Platens：±0.025 mm
Pressure Repeat Precision：±1%
Jigsaw Puzzle Machine Application
Our jigsaw puzzle machine is suitable for blue cord,white cord,wood and grey board material. The whole jigsaw puzzle can be die cut to 1000-2000 pieces one time.
